PC material energy saving traffic solar led road marking studs road reflector

PC material energy saving traffic solar led road marking studs road reflector

solar led road studs

solar road stud lights

Place of Origin:

ShenZhen China

Brand Name:

changdaneng

Certification:

CE

Model Number:

CDN-D015

Contact Us

Request A Quote
Product Details
Power Supply:
2.5V/120MA
Material:
Aluminum Alloy
Solar Panel:
Mono-crystalline Silicon
View Distance:
> 500m
House Material:
PC
Working Mode:
Flash Or Steady
Payment & Shipping Terms
Minimum Order Quantity
10
Price
Price: USD 6- 7 per/ pcs
Packaging Details
2pcs/box, 60pcs/carton, 18.5kg/ctn Carton size:400*275*280mm
Delivery Time
5 working days
Payment Terms
T/T, Western Union
Supply Ability
1000 pcs/week
Product Description




Traffic Solar Led Road Marking Studs with Commercial High Grade IP68 road stud



Product Descriptio



Solar Panel 2V/200MAH mono-crystalline silicon
Battery 1.2V/1500MAH anti-high temperature Li-ion battery
Lighting time 100 hours after fully charged
Work Mode flash, stable or customized

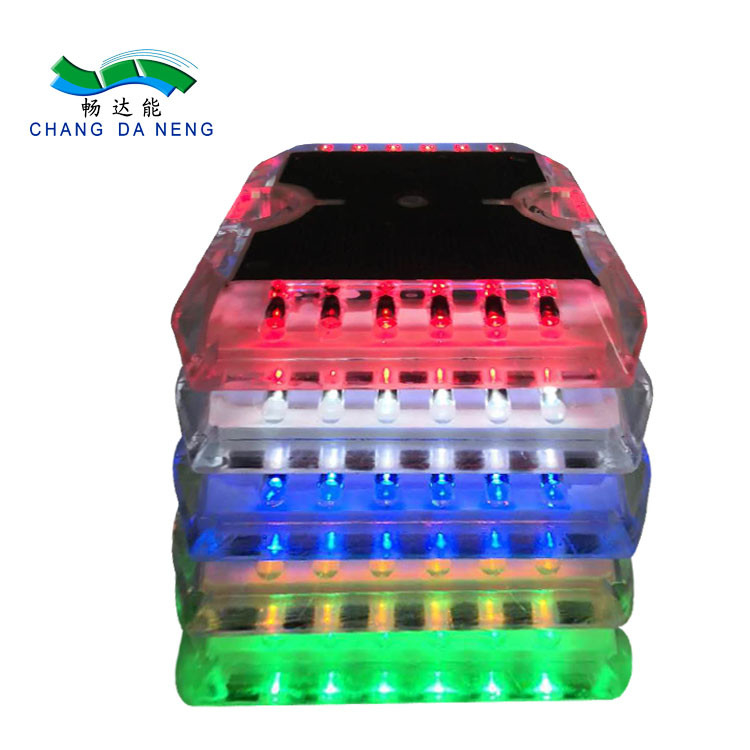

LED Color red/yellow/blue/green/white
LED Qty 12pieces diameter 5mm high brightness Taiwan Epistar LED light
Visibility >1000m
Life Span 3-5 years
Work Temperature -20℃~+80℃
Material anti-UV PC
Size 115*105*20mm
N.W 330g
Certifications IP68/CE/RoHS
Weight Resistantance >10tons

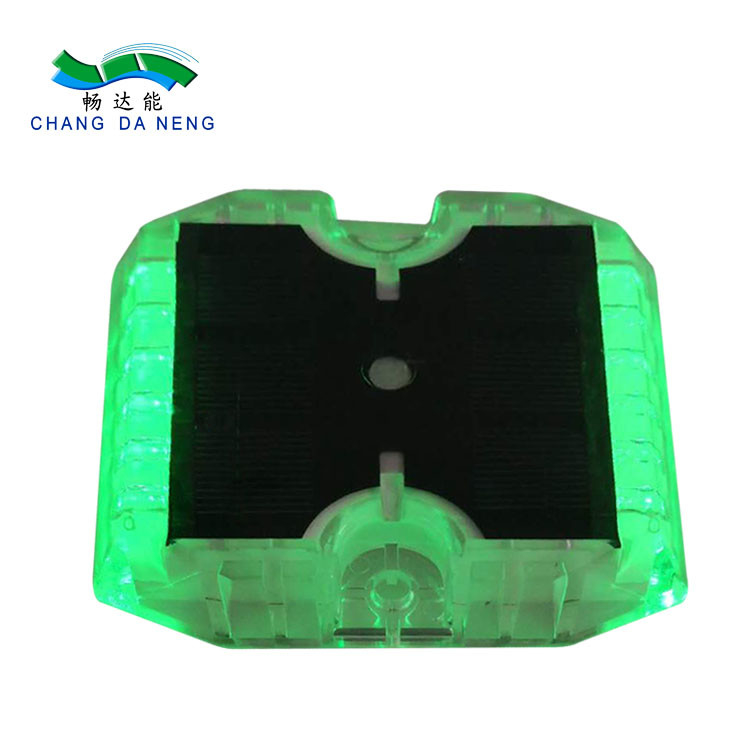

Product Picture



PC material energy saving traffic solar led road marking studs road reflector 0



Application





1. Mainly used for tunnel,turnoff.

2. school gate,accident-prone highway or bend.
3. Foggy area (seaside,airport area), highway or non-street light area.
4. The ramp , curve or some dangerous roads.

PC material energy saving traffic solar led road marking studs road reflector 1



Installation

Solar stud installation is not a complicated matter, but there are many details that require attention. These details play an important role in ensuring the quality and service life of spike.



1. This is most important, please placed in isolation facilities installation safety first, then everyone should be in the safe facility when installing.

2. Determine the installing location. To ensure the installing location is smooth, should level scalable, craks, uneven pavement first, also please be sure the solar panel is being shined by sunlight .

3. To ensure the installing location dry, should clean up it with the brush,

4. Evenly apply appropriate glue on the spike;

5. Firmly press the spike on the installation location with right direction, if the glue is more, please must clean it up;

6. If it is aluminum alloy with pillar, the hole depth must be 1cm deeper than the pillar, hole diameter must be 2mm larger than pillar diameter.

7. After installing, please check it every 2h, to ensure that all the spikes are installed at the right direction and good condition.

8. After the glue curing for 4 hours, removed installation isolation facilities.



PC material energy saving traffic solar led road marking studs road reflector 2



Product features



  1. ODM and OEM are both welcome
  2. The LED chip comes from Taiwan Epistar
  3. PC shell filled with epoxy glue,better durability effect
  4. The battery is 1500MAH anti-high temperature Li-ion battery,which can anti-high temperature -20℃~+80℃
  5. 12 super brightness LED lights:visible on foggy and rainy days for 1000 meters
  6. More than 10 Tons of the weight resistance in static
  7. CE/RoHS/IP68,highly water poof

About Us



We are at your service 24 hours!

We support customer's own design!

We support OEM design orders!






Packaging and Shipping



Two pieces pack in one box / 60pcs in one carton of solar driveway lights / carton size: 135*125MM*50MM.

PC material energy saving traffic solar led road marking studs road reflector 4

2. Ship by UPS ,DHL,FEDEX, by sea or air accoring to clients request.

2.1.For small quantities, we suggest shipping by express door to door service as it is more favorable, fastand convenient.
2.2. For bigger quantities, it can be shipped by air or sea.

PC material energy saving traffic solar led road marking studs road reflector 5



FAQ

Q1. What's the MOQ?
It's 10pcs, but if you need less, it’s ok, but the price will be changed based on your quantity.

Q2.What is your quality warranty?
All of our models are with 2 years quality warranty.

Q3. What’s the lead-time for orders?
Normally it takes 5 working days after receiving payment.

Q4. How long will the solar road stud work during Rainy and Foggy day?

Solar Road Stuc can work 5-7 rainy and foggy day after full charged.

Q5.Can the solar road stud can work well in tropical Counties?

Solar road stud is equiped with Anti-high temperature battery. it can work well in -20 to +70.

Q6. Can I have a sample order for road stud?

Yes, we welcome sample order to test and check quality. Mixed samples are acceptable.

Q7.How do you ship the goods and how long does it take to arrive?

We usually ship by DHL, UPS, FedEx or TNT. It usually takes 3-5 days to arrive. Airline and sea shipping also optional.
