Place of Origin:
ShenZhen China
Brand Name:
changdaneng
Certification:
CE
Model Number:
CDN-D011DH
Contact Us
Blinking solar road stud led light driveway solar raised pavement marker warning road
Product Descriptio
|
Solar road stud CDN-D011D
|
Solar panel | 2.5V/120MA |
| Battery | 1.2V/800MAH Ni-MH | |
| House material | Aluminum alloy | |
| LED | Epistar (color can be white, red, blue, yellow, green) | |
| Size | 120*125*24mm | |
| Control mode | Light control | |
| Working mode | Flash or steady | |
| View distance | >1000m | |
| Loading bearing | >20tons | |
| Working life | >3 years | |
| Waterproof | IP68 | |
| Work temp | -20℃~+70℃ | |
| Warranty | 1 year | |
| Standby time |
15 days |

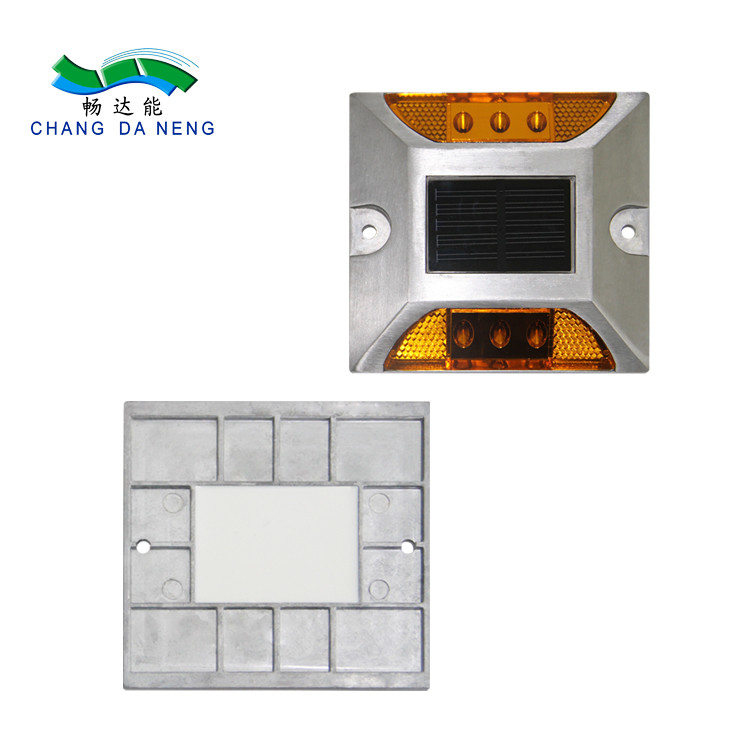

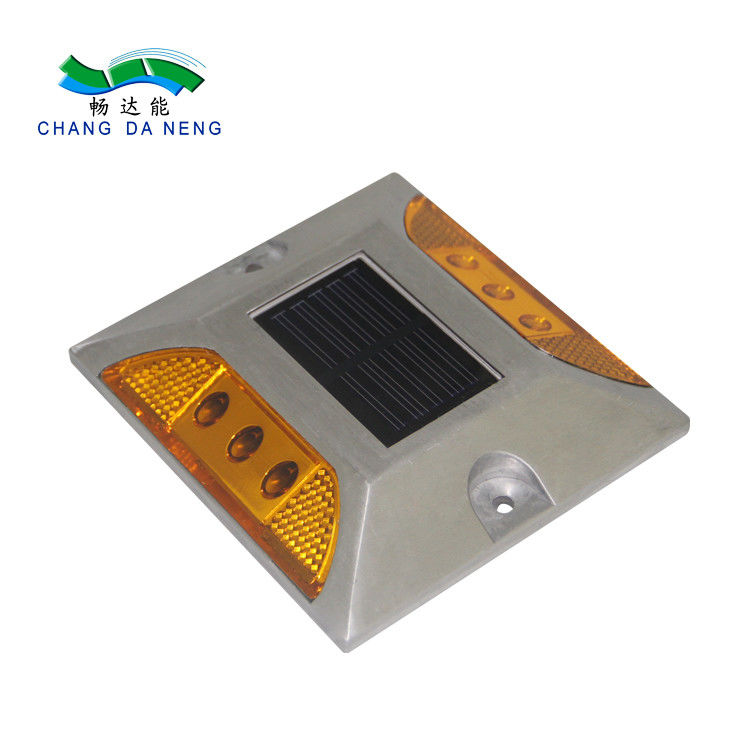

Product Picture
Product Features
Application
1. Mainly used for tunnel,turnoff.
2. school gate,accident-prone highway or bend.
3. Foggy area (seaside,airport area), highway or non-street light area.
4. The ramp , curve or some dangerous roads.
Solar stud installation is not a complicated matter, but there are many details that require attention. These details play an important role in ensuring the quality and service life of spike.
1. This is most important, please placed in isolation facilities installation safety first, then everyone should be in the safe facility when installing.
2. Determine the installing location. To ensure the installing location is smooth, should level scalable, craks, uneven pavement first, also please be sure the solar panel is being shined by sunlight .
3. To ensure the installing location dry, should clean up it with the brush,
4. Evenly apply appropriate glue on the spike;
5. Firmly press the spike on the installation location with right direction, if the glue is more, please must clean it up;
6. If it is aluminum alloy with pillar, the hole depth must be 1cm deeper than the pillar, hole diameter must be 2mm larger than pillar diameter.
7. After installing, please check it every 2h, to ensure that all the spikes are installed at the right direction and good condition.
8. After the glue curing for 4 hours, removed installation isolation facilities.
About Us
We are at your service 24 hours!
We support customer's own design!
We support OEM design orders!
Q1.What is your quality warranty?
All of our models are with 2 years quality warranty.
Q2. What’s the lead-time for orders?
Normally it takes 5 working days after receiving payment.
Q3. How long will the solar garden light work during Rainy and Foggy day?
Solar Road Stuc can work 5-7 rainy and foggy day after full charged.
Q4.Can the solar light can work well in tropical Counties?
Solar road stud is equiped with Anti-high temperature battery. it can work well in -20 to +70.
Packaging and Shipping
2pcs/box, 60pcs/carton, 21kg/ctn of lane divider light,,Carton size:400*275*280mm
