3leds Die Casting Aluminum Solar Road Studs IP68 Waterproof Solar Driveway Road Marker With Constant or Flashing

3leds Die Casting Aluminum Solar Road Studs IP68 Waterproof Solar Driveway Road Marker With Constant or Flashing

solar powered road studs

solar road stud lights

Place of Origin:

ShenZhen China

Brand Name:

changdaneng

Certification:

CE

Model Number:

CDN-DD011

Contact Us

Request A Quote
Product Details
Power Supply:
2.5V/120MA
Material:
Aluminum Alloy
Solar Panel:
Mono-crystalline Silicon
View Distance:
> 500m
Working Life:
>3 Years
Loading Bearing:
>20tons
Payment & Shipping Terms
Minimum Order Quantity
10
Price
Price: USD 4 - 5 per/ pcs
Packaging Details
2pcs/box, 60pcs/carton, 18.5kg/ctn Carton size:400*275*280mm
Delivery Time
5 working days
Payment Terms
T/T, Western Union
Supply Ability
1000 pcs/week
Product Description




3leds Die Casting Aluminum Solar Road Studs IP68 Waterproof Solar Driveway Road Marker With Constant or Flashing





Product Descriptio



1. Power: 0.3 W

2. Power Supply: solar cell (monocrystal silicon)3.87V/100mA

3. Shell: aluminum alloy

4. Battery: 800MA Ni-Hm High temperature Battery

5. Working Hours: 10 hours per night

6. Lighting Status: flash (2Hz±20%) or constant light

7. Light Color: red, yellow, blue, white, green

8.Visible Range: >800 m

9. Life Span: >5 years

10.Working Temperature: -20°C~+70°C

11. Activate Condition: light intensity <500Lux

12. Max Load Capacity: static pressure capability>10 tons

13. Net Weight: 0.76KG/pcs

14. Size: 140(L)*140(W)*100(H)mm

15. Package Size: 100PCS/carton

16: Installation: double fix the stud with adhesive and screw, make sure it will not loose under long term pressure

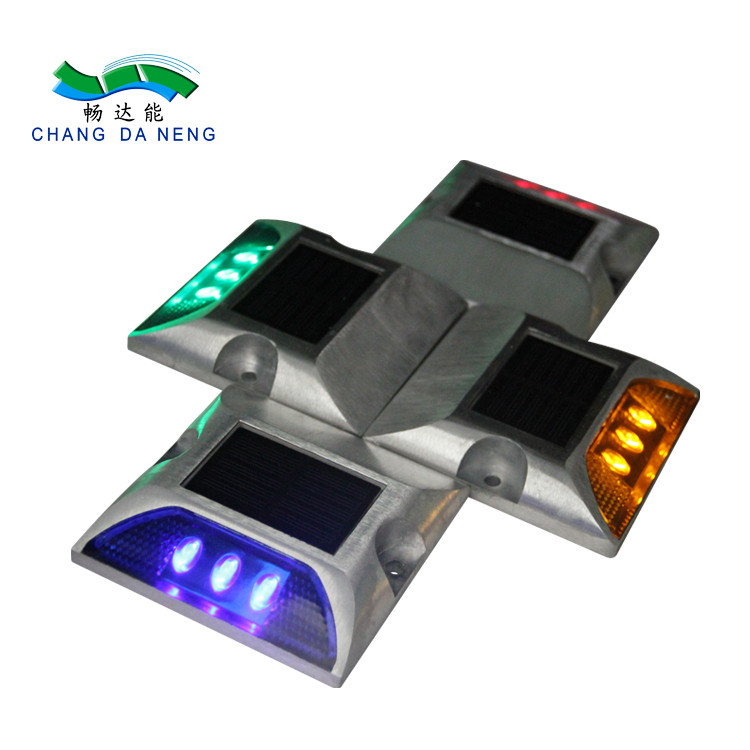

Product Picture



3leds Die Casting Aluminum Solar Road Studs IP68 Waterproof Solar Driveway Road Marker With Constant or Flashing 0



Application





1. Mainly used for tunnel,turnoff.

2. school gate,accident-prone highway or bend.
3. Foggy area (seaside,airport area), highway or non-street light area.
4. The ramp , curve or some dangerous roads.



3311QQ20170421093207QQ20170421093202





Installation

Solar stud installation is not a complicated matter, but there are many details that require attention. These details play an important role in ensuring the quality and service life of spike.



1. This is most important, please placed in isolation facilities installation safety first, then everyone should be in the safe facility when installing.

2. Determine the installing location. To ensure the installing location is smooth, should level scalable, craks, uneven pavement first, also please be sure the solar panel is being shined by sunlight .

3. To ensure the installing location dry, should clean up it with the brush,

4. Evenly apply appropriate glue on the spike;

5. Firmly press the spike on the installation location with right direction, if the glue is more, please must clean it up;

6. If it is aluminum alloy with pillar, the hole depth must be 1cm deeper than the pillar, hole diameter must be 2mm larger than pillar diameter.

7. After installing, please check it every 2h, to ensure that all the spikes are installed at the right direction and good condition.

8. After the glue curing for 4 hours, removed installation isolation facilities.



Product features

1. Easy to install. Solar Panel ,low power consumption.

2. High luminous intensity. Anti -high (low) temperature.
3. Long lifespan > 3 years. Passed CE,ROH

4 .IP68 waterproof. Our solar road stud still can work normally after 72 hours dipping in water.

6 . Aluminum alloy shell, load-bearing is over 20tons, can hold a car on the road.

7. Good warranty for quality, one year warranty at least, 2 year warranty can do as client's

require!

3leds Die Casting Aluminum Solar Road Studs IP68 Waterproof Solar Driveway Road Marker With Constant or Flashing 5



About Us



We are at your service 24 hours!

We support customer's own design!

We support OEM design orders!






Packaging and Shipping



2pcs/box, 60pcs/carton, 21kg/ctn of lane divider light,,Carton size:400*275*280mm

3leds Die Casting Aluminum Solar Road Studs IP68 Waterproof Solar Driveway Road Marker With Constant or Flashing 7

2. Ship by UPS ,DHL,FEDEX, by sea or air accoring to clients request.

2.1.For small quantities, we suggest shipping by express door to door service as it is more favorable, fastand convenient.
2.2. For bigger quantities, it can be shipped by air or sea.





FAQ

Q1. What's the MOQ?
It's 10pcs, but if you need less, it’s ok, but the price will be changed based on your quantity.

Q2.What is your quality warranty?
All of our models are with 2 years quality warranty.

Q3. What’s the lead-time for orders?
Normally it takes 5 working days after receiving payment.

Q4. How long will the solar road stud work during Rainy and Foggy day?

Solar Road Stuc can work 5-7 rainy and foggy day after full charged.

Q5.Can the solar road stud can work well in tropical Counties?

Solar road stud is equiped with Anti-high temperature battery. it can work well in -20 to +70.

Q6. Can I have a sample order for road stud?

Yes, we welcome sample order to test and check quality. Mixed samples are acceptable.

Q7.How do you ship the goods and how long does it take to arrive?

We usually ship by DHL, UPS, FedEx or TNT. It usually takes 3-5 days to arrive. Airline and sea shipping also optional.
